| MODEL |

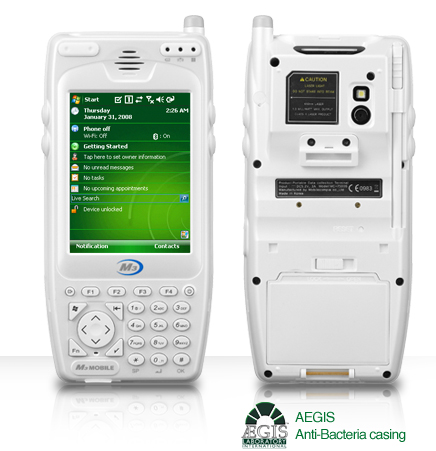

M3 SKY |
| MC-7100S |
PERFORMANCE
CHARACTERISTICS |
CPU |
PXA270 624MHz (Optional 520MHz) |
| OS |
Windows Mobile 6.1 |
| RAM |
128MB |
| ROM |
NAND 256MB |
PHYSICAL
CHARACTERISTICS |
Dimension (W x H x D) |
78.6 x 163.5 x 24.9 mm |
| WEIGHT |
320g(Including standard battery)
350g(Including extended battery) |
| DISPLAY |
3.5” TFT-LCD 260k color, Backlight LED Type |
| KEYPAD |
Numeric / QWERTY |
| BATTERY |
STANDARD |
Rechargeable Li-ion 2,200mA/h |
| EXTENDED |
Rechargeable Li-ion 4,000mA/h |
| EXPANSION SLOT |
Mini SD card |
| SCANNER1D2D |
1D Laser |
| CAMERA |
Spec |
2.0M Auto Focus |
| Flash |
LED flash |
INTEGRATED
RADIO |
WWAN RADIO |
Radio |
GSM/GPRS/EDGE/HSDPA |
| Frequency Band |
850/900/1800/1900/2100MHz |
| WLAN RADIO |
Radio |
IEEE 802.11 b/g |
| WPAN RADIO |
Bluetooth |
Bluetooth Class II V2.0 + EDR |
| IrDA |
IrDA V1.2 |
| GPS |
Sirf III |
USER
ENVIRONMENT |
TEMP |
OPERATING |
-20℃ to 60℃ / -4˚F to 140˚F |
| STORAGE |
-30℃ to 70℃ / -22˚F to 158˚F |
| HUMIDITIY |
MIL-STD 810F, Method 507.4, 95%RH temp cycle 20℃/60℃ |
| DROP Specification |
1.5m drop to steel surface, 2 drops per 6 sides,
meets and exceeds MIL-STD 810F, Method 516.5 |
| RAIN / DUST PROTECTION |
IP65 |
