 Born to serve mobile workers

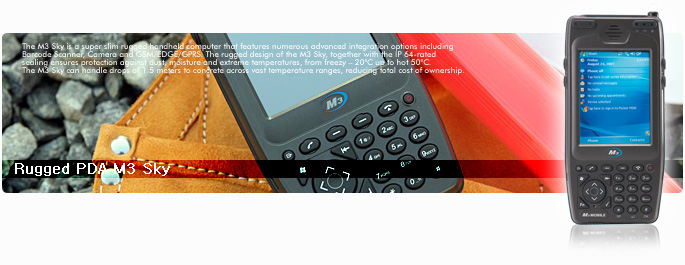

Dynamic & Versatile M3 SKY
M3 SKY provides all the functions the customer requires for daily mobile operations

  • 1D / 2D scanners (as for customer's selection)
  • High-resolution color camera with flash and auto-focus.
  • 2G (GPRS/EDGE) and 3G (HSDPA) network for high-speed and reliable voice & data communications
  • Highly secured Wi-Fi (802.11 b/g) synchronization including cost-effective VoIP.
  • Bluetooth connectivity linking with wide range of peripherals (mobile printer, headset, etc).
  • Sirf III GPS supporting diverse location based application
  • 13.56MHz RFID reader for all prevailing standard tags

Amazingly, all the functions are built in the small form factor in one unit. Each function is optional and the customer can make their own tailored configurations based on applied field and cost.

Rugged M3 SKY
There is always an environmental challenge for the customers whose target is to make maximum productivity in the field. Rugged features of the M3 SKY exceed these kinds of challenges in extreme temperature, heavy rain and withstand multiple drops in use. The IP65 rated and 1.5m drop certified M3 SKY is suited for both industrial as well as the military application categories.

  • IP 65 rating
  • Resistant to multiple 1.5m drops to concrete surface
  • Operating temperature of -20 ℃ ~+60 ℃

Ergonomics & Compactness
Slim M3 SKY comes into the face of your palm with portable grip. Having the light weight of only 280 grams, M3 SKY is free-of-fatigue for long-time heavy duties and user friendly and easy-to-use ergonomic keypad.

Powerful Performance

  • Windows Mobile 5.0/6.1 phone edition compatible with wide range of applications
  • 3.5 inch TFT LCD delivering extensive visibility.
  • Powerful Intel X-scale PXA 270 520MHz (max.624MHz)
  • 128MB RAM and 128MB Flash storage (expandable up to 256MB)
  • NEW SUMMIT WLAN IEEE 802.11 b/g

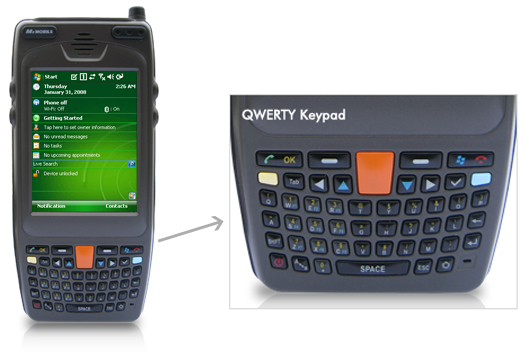

  • NEW QWERTY Keypad (Optional)

manual down brocher down manual down


   Specification
OS
  Windows Mobile 5.0/6.1 Phone Edition
CPU
  Intel Bulverde PXA-270 520MHz (max.624MHz)
Memory(RAM/ROM)
  128MB/128MB(up to 256MB)
Radio
  GSM/GPRS/EDGE, SUMMIT WLAN(802.11 b/g), Bluetooth
Camera
  2.0 Mega Pixels(Auto Focus)
Dimension
  163.5ⅹ78.6 ⅹ 24.9mm
Weight
  320g including battery
Display
  240ⅹ320, 3.5" Color TFT LCD(65,000 Color) Backlight LED Type
I/O
  USB Client, External Serial Port, Microphone, Speaker, Stereo Ear-mic jack
Battery   Rechargeable and detachable Li-ion 2,200 mA, operates 8 hours.
IP
  IP 65
Drop   1.5m
Operating Temperature   -20~60'C
