Born to serve mobile workers |
|
| |
|
| |
|
| |
  |
| |
| |
| |
Specification |
| |
| MODEL |

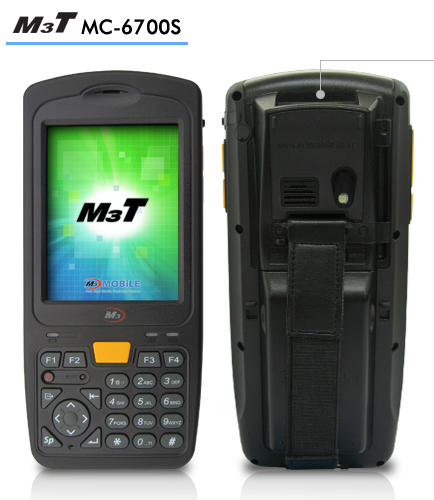

M3 T |
| MC-6700S |
PERFORMANCE
CHARACTERISTICS |
CPU |
INTEL PXA320 806MHz |
| OS |
Windows CE 5.0 |
| RAM |
256MB |
| ROM |
256MB(up to 512MB) |
PHYSICAL
CHARACTERISTICS |
Dimension (W x H x D) |
77 x 168.8 x 28 mm (including std. battery)
77 x 168.8 x 34.5 mm (including ext. battery) |
| WEIGHT |
378g / 13.3oz (including std.battery)
424g / 14.9oz (including ext.battery) |
| DISPLAY |
Type |
3.5 " QVGA TFT type, 260k colors |
| MODEL NO. |
UT035QVP-011 |
| KEYPAD |
Numeric |
| BATTERY |
STANDARD |
Li-polymer 3.7V 2,700mA/h |
| EXTENDED |
Li-ion 3.7V 4,800mA/h |
| EXPANSION SLOT |
Micro SD card(up to 8G) |
| SCANNER |
1D |
1D Laser |
| 2D |
2D Imager |
| CAMERA |
Spec |
3.0M pixel AF |
| Flash |
O(Led) |
| ETHERNET |
O(via cradle) |
INTEGRATED
RADIO |
WWAN RADIO |
Radio |
CDMA 1x/EVDO |
| Frequency Band |
800MHz |
| WLAN RADIO |
Radio |
802.11 b/g, 802.11 a/b/g |
| WPAN RADIO |
Bluetooth |
Bluetooth Class II V2.0 + EDR |
| GPS |
Integrated GPS |
USER
ENVIRONMENT |
TEMP |
OPERATING |
-20℃ to 60℃ / -4˚F to 140˚F |
| STORAGE |
-30℃ to 70℃ / -22˚F to 158˚F |
| HUMIDITIY |
90% non-condensing |
| DROP Specification |
1.8m / 6ft. Drop to steel surface, 2 drops per 6 sides |
| RAIN / DUST PROTECTION |
IP65 |
| Accessory |
Sing Slot Serial Cradle, Single Slot Ethernet Cradle, Standard Battery(Li-polymer 2,700mA/h), Extended Battery(Li-ion 4,800mA/h), AC Cord, Adaptor, USB Cable, Stylus Pen, Ear-Phone, Leather Case |
|
| |
