 Born to serve mobile workers

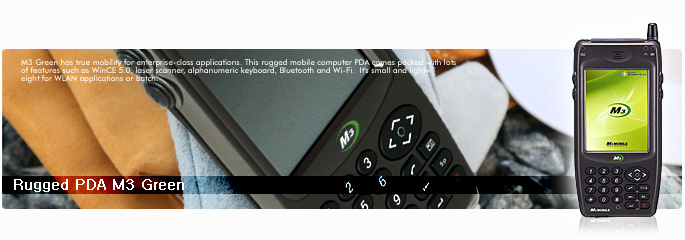

Dynamic & Versatile M3 GREEN
M3 Green provides all the functions the customer requires for daily mobile operations

  • 1D / 2D barcode scanners (as for customer’s selection)
  • High-resolution color camera with flash and auto-focus.
  • GPRS/Edge network for high-speed and reliable voice & data communications
  • Highly secured Wi-Fi (802.11 b/g) synchronization including cost-effective VoIP.
  • Bluetooth connectivity linking with wide range of peripherals (mobile printer, headset, etc).
  • 13.56MHz RFID reader for all prevailing standard tags

Amazingly, all the functions are built in the small form factor in one unit. Each function is optional and the customer can make their own tailored configurations based on applied field and cost.

Rugged M3 GREEN
There is always an environmental challenge for the customers whose target is to make maximum productivity in the field. Rugged features of the M3 Green exceed these kinds of challenges in extreme temperature, heavy rain and withstand multiple drops in use. The IP54 rated and 1.5m drop certified M3 Green is suited for both industrial as well as the military application categories.

  • IP 54 rating
  • Resistant to multiple 1.5m drops to steel surface
  • Operating temperature of -10 ℃ ~+50 ℃

Ergonomics & Compactness
Slim M3 Green comes into the face of your palm with portable grip. Having the light weight of only 280 grams, M3 Green is free-of-fatigue for long-time heavy duties and user friendly and easy-to-use ergonomic keypad.

Powerful Performance

  • Optimized Windows CE 5.0
  • 3.5 inch TFT LCD delivering extensive visibility.
  • Powerful Intel X-scale PXA 270 (520MHz)
128MB RAM and 64MB Flash storage (expandable up to 256MB)
manual down brocher down

   Specification
OS
  Windows CE.NET 5.0
CPU
  Intel X scale PXA-270(520MHz)
Memory(RAM/ROM)
  128MB/64MB(up to 256MB)
Radio
  GSM/GPRS, WLAN(802.11b/g), Bluetooth
Camera
  2.0 Mega Pixels(Flash)
Dimension
  160 ⅹ78.6ⅹ 29mm
Weight
  250g including battery
Display
  240ⅹ320, 3.5" Color TFT LCD(65,000 Color) Backlight LED Type
I/O
  USB Client, External Serial Port, Microphone, Speaker, Stereo Ear-mic jack
Battery   Rechargeable and detachable Li-ion 2,200 mA, operates 8 hours.
IP
  IP 54
Drop   1.5m
Operating Temperature   -10~50'C
