 Born to serve mobile workers







  • Specification
    		•

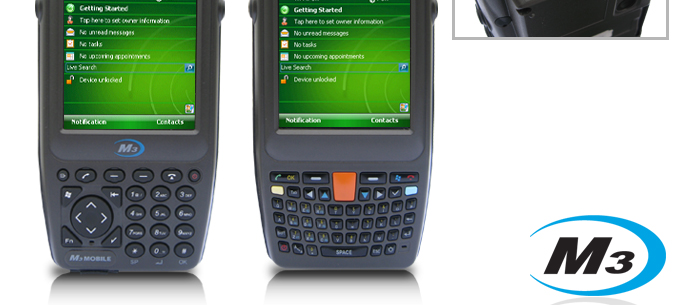

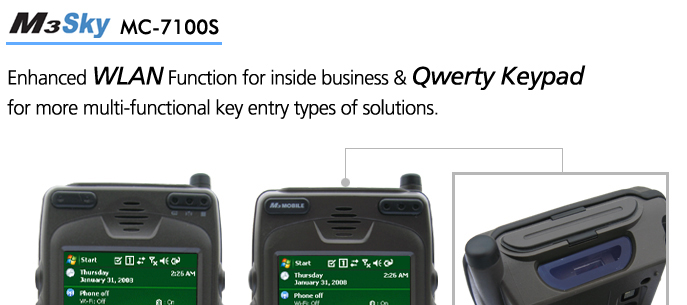

    MODEL M3 SKY
    MC-7100S
    PERFORMANCE
    CHARACTERISTICS    		 CPU INTEL PXA270 624MHz (Optional 520MHz)
    OS Windows Mobile 6.1
    RAM 128MB
    ROM NAND 256MB
    PHYSICAL
    CHARACTERISTICS    		 Dimension (W x H x D) 78.6 x 163.5 x 24.9 mm
    WEIGHT 320g (Including standard battery)
    350g (Including extended battery)
    DISPLAY 3.5” TFT-LCD 260k color, Backlight LED Type

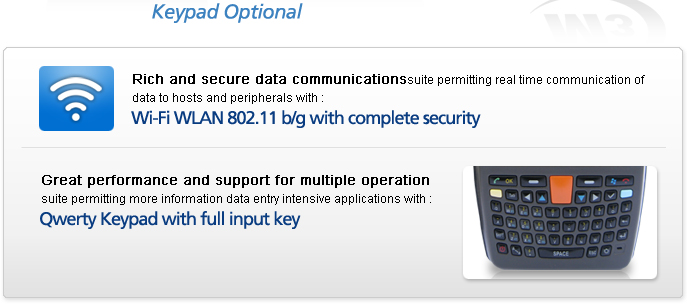

    KEYPAD Alphanumeric / Qwerty (Optional)
    BATTERY STANDARD Rechargeable Li-ion 2,200mA/h
    EXTENDED Rechargeable Li-ion 4,000mA/h
    EXPANSION SLOT MiniSD Card
    SCANNER 1D Laser
    CAMERA Spec 2.0M Auto Focus
    Flash LED flash
    INTEGRATED
    RADIO    		 WWAN RADIO Radio GSM/GPRS/EDGE/HSDPA
    Frequency Band 850/900/1800/1900/2100MHz
    WLAN RADIO Radio IEEE 802.11 b/g
    WPAN RADIO Bluetooth Bluetooth V1.2 Class II
    IrDA IrDA V1.2
    GPS Sirf III
    USER
    ENVIRONMENT    		 TEMP OPERATING -20℃ to 60℃ / -4˚F to 140˚F
    STORAGE -30℃ to 70℃ / -22˚F to 158˚F
    HUMIDITIY MIL-STD 810F, Method 507.4, 95%RH temp cycle 20℃/60℃
    DROP Specification 1.5m drop to steel surface, 2 drops per 6 sides, meets and exceeds MIL-STD 810F, Method 516.5
    RAIN / DUST PROTECTION IP65
    Vibration MIL-STD 810F, Method 514.5
    Temp Shock MIL-STD 810F, Method 503.4 (-35°C/65°C)
    Immersion MIL-STD 810F, Method 512.4
    Accessory Sing Slot Cradle, Single Slot Ethernet Cradle, Four Slot Ethernet Cradle, Four Slot Cradle, Car Cradle, Standard Battery(Li-ion 2,200mA/h), Extended Battery(Li-ion 4,000mA/h), AC Cord, Adaptor, USB Cable Snap On, Stylus Pen, Ear-Phone, Leather Case, Charging Holster
